Lianchuang Medical Equipment Co.,Ltd

Electronic colposcope adopts the most sophisticated digital image technology in the world and it is a high tech diagnosis equipment operated by computer software.

The computer displays simultaneous images of the observed region on to the screen and owing to the high quality illumination and magnification capacity, its pictures are clear enough to detect and locate the tiniest lesions, which can be examined by the doctor on the computer screen with easy operation;

This process applies to both diagnoses and treatment. At the same time, with the accessory function of an image processor and a report system of pictures and texts, integrated management can be performed of images; their selecting, freezing, analyzing, processing, storing and printing. With this help , both doctors and patients are  greatly assisted.

In actual detecting ,just use a vaginal speculum to expose the reproduction channel and cervix Then fix the colposcope camera at a distance of 30cm away from the reproduction channel opening.  Focus the camera on to the surface of the cervix or vagina,

By zooming, clear images of the focused regions are displayed on the computer screen ,which can be stored and replayed later for evaluating treatment effect in compare;

Throughout the observation, least discomfort or pain of the patient is involved .As a result , it is widely applied to detection of pathological changes of vagina, reproduction channel and cervix.

It is compared to as a pair of super eyes of the doctor and universally embraced by hospitals and patients;

Diagnosis Range:

For Vaginitis, cervicitis, cervix erosion and especially ,initial cervical carcinoma it just provides apparent effectiveness . Thus it becomes an indispensible and standardized instrument for Gynecology diagnosis. It is mainly used for cases of benign lesions ,precancerous lesions, and early cancer diagnosing. Suitable for the detection and diagnosis of malignant tumor on the mucosa tissues of human body, it is compatible with hysteroscopy system, too, just by replacing the software. So it can be turned into a double functional device of both colposcope and hysteroscopy diagnosis system.

Dominant features

White LED of extreme bright lighting source, evenly lit, promising clear, bright and colorful images.

It exceeds the traditional method of a halogen lamp by at least 60% in terms of brightness and color temperature.

Product life span is over 10,0000.00hours.

Displays the most real colors of tissues and textures.

Pictures more clear so subcutaneous tissues and vascular are clearly visible for easy identification of minimal details.

Software of Auto- Acetate Reaction Timing and Filter Lens Timing and data Acquisition, making the clinical colposcope monitoring of Acetate Reaction and Iodine Reaction completely automatic.

Open access to a professional lexicon of diagnosing experts , assisting compiling case reports.

Supplying the most common case atlases for doctors’ handy reference;

English version of integrated image processing functions including pictures selecting, freezing, deleting, displaying, handling, reporting, printing and storing.

Diagnosis result be presented in form of either real color images or graph-text.

Images can be heighted through many ways . Marks and words can be added and measurement of areas, length and circumference can be attached;

Function for video or slide replay.

Instant case research and statistics function.

Compatible with hysteroscopy system, too. So can be turned into a colposcope / hysteroscopy diagnosis system.

Technical Index;

Equipped with Sony high clarity color video camera, standardized high 1080P clear output ;

Supportive to high clear 1920*1080 display;

High magnification without any error points and false contours , the key point for finding early stage lesions effectively.

Adoption of High clarity Acquisition Card, which is compatible with HD-SDI and HD-HDMI for clear video and photo collection;

Magnification Capacity: 22 times optical, 18times digital

Camera Illumination: Brightness 6 levels adjustable LED circular Source: Maximum : ≥2000Lux.

Camera Horizon Resolution: 600mm lines up,

Camera SNR:50db

Camera Zooming Distance: 100～400mm, supportive to 10  ～1000mm

Camera Minimum Illumination:0.15Lux,

Camera Zooming: 1～240

Camera image output interface: Video S- Video PAL Mode

Camera Zooming Style: Instant Auto Zooming/ Manual Zooming

Camera Illumination Type: Annular LED of highly bright gallium, arsenide and phosphide lights, life span can last 10.000,00hours.

Camera Video Output Mode: PAL, VBS-standard 1.0vp-p

AE Control : auto/ manual/ brightness/ EV compensation/ Backlight compensation

Photo digital effect: wide variety of photo processing effect

Images display : 22’’ color High resolution display screen

Image Acquisition Mode: mouse and foot switches

Image Printing Mode: compatible with real color printing on both ink-jet paper and photographic paper.

Photo storage Capacity: 100,0000,00pcs

Compatible with hysteroscopy system, too. So can be turned into a colposcope / hysteroscopy diagnosis system.

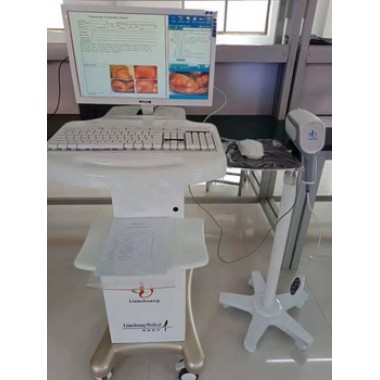

Accessories::

One set of standardized computer with a 22” high clarity liquid crystal display,     a stable host;

Specialized software for high clarity digital colposcope;

A digital signal Camera of 3.5 million pixels. Presenting perfect high quality pictures;

Collection card of high clarity digits;

Well known brand laser printer;

A luxury trolley.

Service:

After sale service: forever technological backup and maintenance after sale;

24/7 immediate reply on phone to give guidance and technological backup.

Engineers arrival to perform service if necessary.

Advantages that differ us from others

1,Our colposcope is based on SDI high clarity Collection Card which is superior greatly to most others whose is SDMI. The difference is reflected in the clarity degree of colposcope pictures.

Of exactly the same pixel volume , our photo clarity and resolution degree exceeds others’ by far.

Equipped with Sony high clarity color video camera, standardized high 1080P clear output ;

Supportive to high clear 1920*1080 display;

2, Software of Auto- Acetate Reaction Timing and Filter Lens Timing and data Acquisition, making the clinical colposcope monitoring of Acetate Reaction and Iodine Reactions completely automatic.

3,Sony camera imported with original packing of a resolution , color difference ratio and zooming speed much higher than others in the same industry.

4,Our colposcope products are patent by China Medical Department authority and we have obtained National Industrial CE certificate and we receive governmental subsidy each year for exploring advanced software.

Product’s main features:

1,1/2.86’’ CMO S image indicators; High anti jamming capability; high quality pictures and sensitivity and extremely clear images;

2,High Resolution Ratio:

Up to 1920-1080 ; the way of scanning each and every one of the 1080 lines is definitely superior to  that of scanning every two in terms of picture quality.

3,Zooming: Optical 20X + Digital 18X

4,Focusing : Instant auto + manual

5,Electronic focus :3D-DNR

6,Strong light Control: HLC

7, Wide=D

8, Anti- Vibration function

9,Multiple light source, now shadow.
